Sine On Random Vibration Test System Electromagnetic Vibration Testing Equipment

Name: Sine On Random Vibration Test System Electromagnetic Vibration Testing Equipment
Brand: LABTONE
Price: 1 USD

Best Sine On Random Vibration Test System Electromagnetic Vibration Testing Equipment wholesale

Brand Name : LABTONE

Model Number : EV203

Certification : CE / ISO

Place of Origin : Dongguang, China

MOQ : 1 Set

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 15 Sets / Month

Delivery Time : 45 Working Days

Packaging Details : Plywood Case with Vacuum Packing

Rated Sine Force : 3 kN

Maximum Velocity : 120 cm/s

Power Amplifier : Amp3k

Payload : 120 kg

Armature Mass : 3 kg

Power Supply : AC 380V 50Hz

Contact Now

Sine On Random Vibration Test Electromagnetic Vibration Test System

Application

Sine and Random Vibration Test System Equipment used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, communications, home appliances

and other fields. The air-cooled electro-dynamic shakers are designed for the vibration testing of small electronic or mechanical components or other assemblies up to 200 kg.

Electronic parts and systems - qualification testing
Battery testing
Computer equipment testing
Automotive component testing
Satellite component testing
General stress screening

Key Feafures

Armatures diameters from 150 mm to 450 mm .
Pneumatic load support
Rugged trunnion design
Big displacement up to 100mm
Standard body isolation and guidance system designed to eliminate the use of a seismic base
Strength of the suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability.
Perfect performance on amplitude variation.
High efficient on D Class power conversion, 3 - Sigma peak current, provide the optimization of power consumption and minimum harmonic distortion.
Rapid self-test diagnostics and chain safeguard, high high safety and reliability
Air gasbag isolation damping device realize the the vibration table with no need for special foundation. Perfect reappearance vibration waveform and the reduction of vibration transmission
Different application on the vertical and horizontal tables.
Simple operation for the controller.

Design standard

MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS

Working Principle:

Sine On Random Vibration Test System Electromagnetic Vibration Testing Equipment

Specifications: EV103-EV220

Model	EV103	EV203	EV106	EV206	EV210	EV220
Vibration Generator	VG300/25	VG300/40	VG600/25	VG300/50	VG1000/50	VG2000/50
Frequency(Hz)	2-4000	2-2500	2-3000	2-3000	2-3000	2-2500
Max Exiting Force(kg.f)	300	300	600	600	1000	2000
Max. Displacement (mmp-p)	25	38	25	50	50	50
Max. Acceleration(g)	100	100	100	100	100	100
Max. Velocity(cm/s)	200	120	180	200	200	200
Payload(kg)	110	120	200	200	300	400
Armature Mass(kg)	3	3	6	6	10	20
Armature Diameter(mm)	φ150	φ150	φ200	φ200	φ240	φ320
Cooling Method	Forced Air Cooling
Vibration Generator Weight(kg)	460	460	720	920	1100	1600
Vibration Generator Dimension LWH(MM)	750560670	750555670	800600710	800600710	845685840	12008701100
Power Amplifier	Amp3k	Amp3k	Amp6k	Amp6k	Amp12k	Amp22k
Cooling Method	Forced Air Cooling
Power Amplifier Weight(kg)	250	250	320	320	350	500
Power Amplifier Dimension LWH(MM)	8005501250	8005501250	8005501250	8005501250	8005501520	8005501520
Utility Requirements	3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW)	8	9	18	20	25	35

Shaker Size:

Sine On Random Vibration Test System Electromagnetic Vibration Testing Equipment

Customer Services

Presales:

Technical consultation: test method, laboratory planning and suggestion.
Equipment selection: selection scheme, FAQ.
Product testing scheme.

In-Sales:

Provide favorable price
Customer communication and progress report.
Guidance for pre-installation preparation, equipment commissioning and test run.
Calibration (when Third Party’s verification is required).

After-Sales:

Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.

Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.

Technical support: special paid services are provided according to customer’s needs.

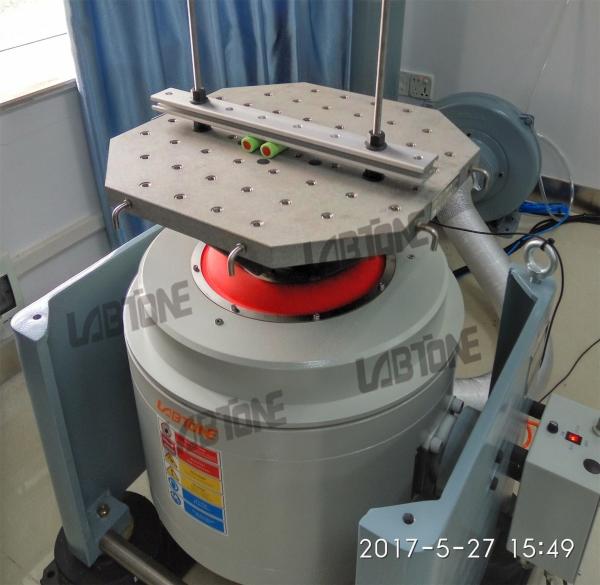

Detailed Pictures:

Sine On Random Vibration Test System Electromagnetic Vibration Testing Equipment
